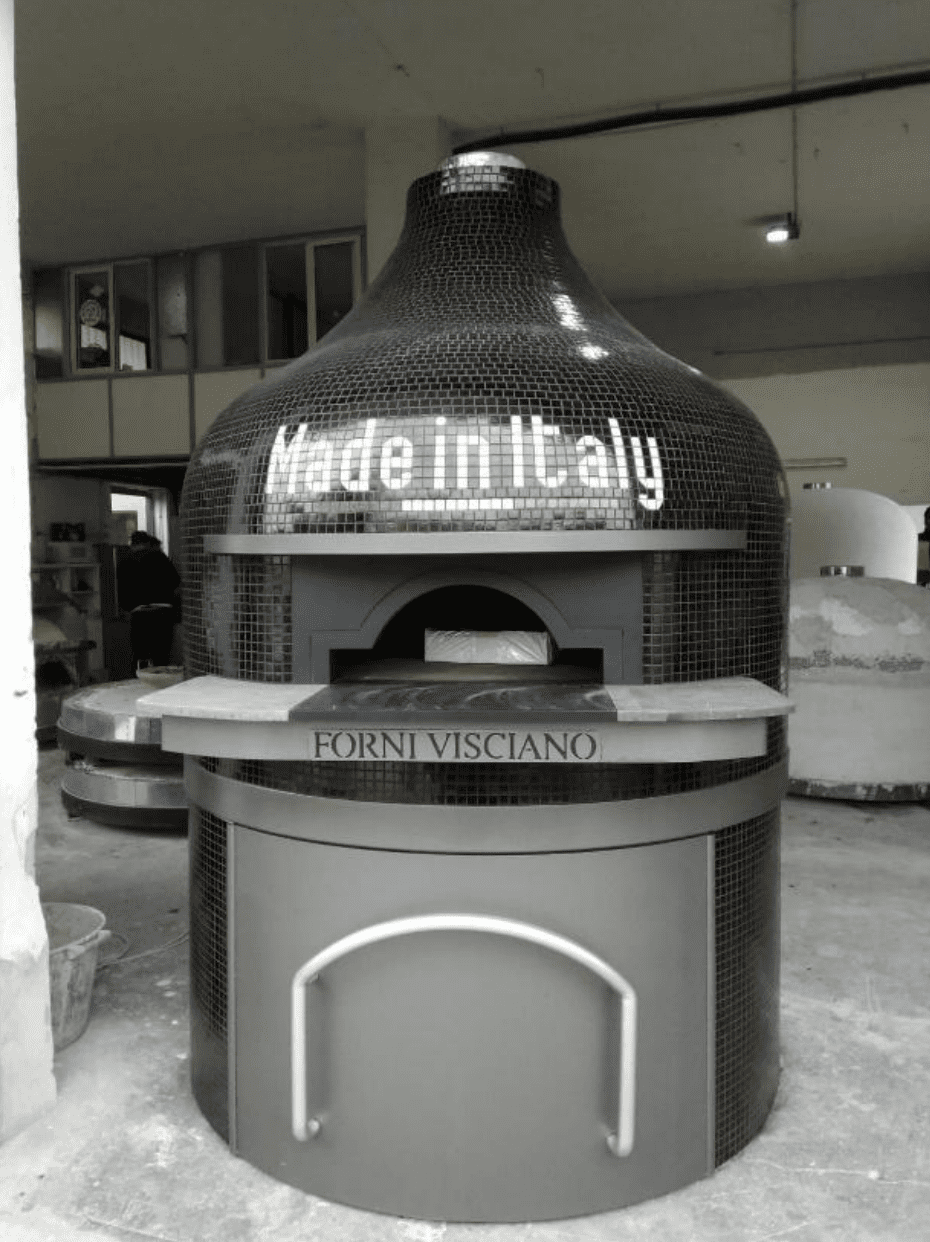

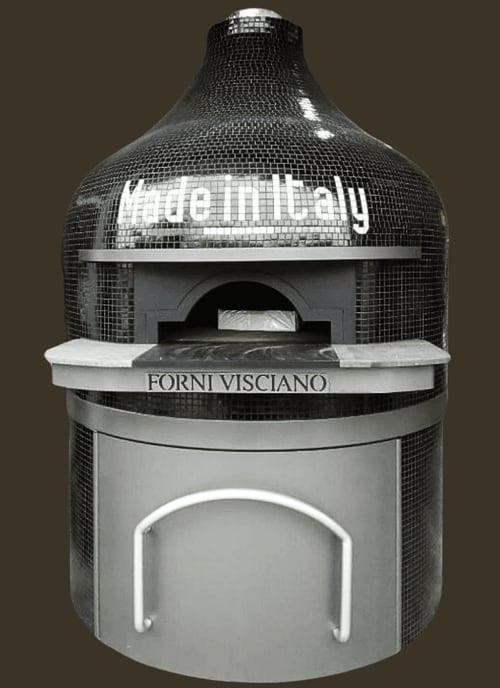

Vulcano Static Wood Oven

The Static Volcano Wood-Fired Oven is available in 7 sizes with an internal diameter ranging from 80–150 cm and ensures a consumption efficiency of 5.5 kg/h thanks to wood fuel.

The so-called “Volcano” oven is recognizable by its characteristic extension that gradually narrows at the top, on the upper part of the dome, just like the crater of a volcano, which is one of Naples’ symbols recognized all over the world. This typical design is not limited to aesthetics: in fact, it gives the room a magical atmosphere, in line with tradition but without being excessively intrusive.

Thanks to the reinforced and painted iron base, the stability of this oven is one of the most recognized on the market. The insulation is of high quality thanks to the correct use of expanded clay and ceramic fiber, while the biscotto baking floor and the Sorrento brick dome ensure uniform and consistent cooking: in this way the oven gives the pizza the right balance between crispness and softness.

As with all Visciano Ovens, the Static Volcano Wood-Fired Oven also features thermal insulation capable of reducing the external temperature by 93% to 94% compared to the internal temperature. This will keep the temperature inside stabilized, limiting heat losses as much as possible, allowing the person who physically handles the cooking to work easily and agilely, without difficulty.

Technical Data Sheet of Vulcano Static Wood Oven

The Neapolitan oven is synonym of pizza and pizza is the emblem of excellence of italian cuisine. We make our ovens in full respect of tradition, blending tradition, innovation and with a high aesthetic sense. This is the secret of those who choose Forni Visciano.

General Features

Number of Sizes

7

Fuel Type

Wood

Consumption

5,5 kg/h

Internal Diameter

80–150 cm

Internal Dome Height

40 cm

Base

reinforced and painted iron

Baking Floor

Sorrento biscotto floor

Crown and Dome

Sorrento refractory bricks

Internal Dome Height

40 cm

Insulation

expanded clay and ceramic fiber

External Cladding

glass or ceramic mosaic

Recommended Operating Temperature

400/500 °C

Maximum Thermal Power

24.070 kCal/h – 28 kW

Exhaust Gas Temperature

190 °C

Maximum External Oven Wall Temperature

30 °C

Maximum Temperature Reachable in the Technical Compartment

35 °C

Exhaust Mass Flow

650 m³/h (at ignition); 500 m³/h (at full operation)

Smoke Expulsion

Natural draft

Chimney

∅ 200/250 DN

Supply Voltage

35 °C

Total Electric Power

-

Electric power burner

-

Inverter electrical power

-

Electric Motor Power

-

Maximum Plate Rotation Speed

-

Dimensions and Capacity Vulcano Static Wood Oven

Only Certified Products

All our products, from ovens to accessories, are CE certified, respect the environment and the personnel they come into contact with.
