Technical Details

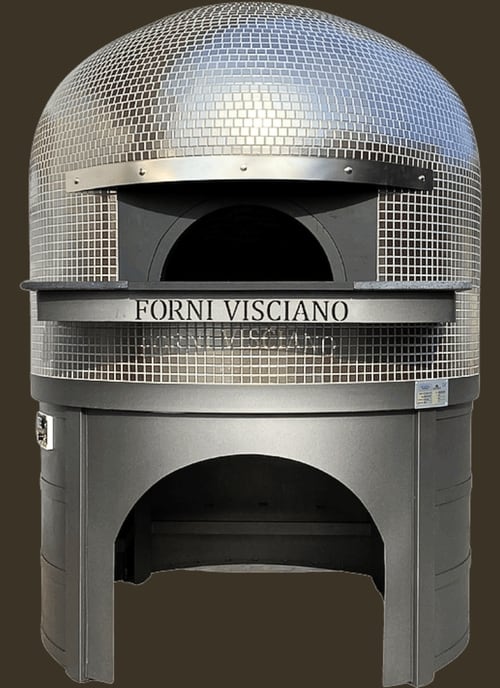

Classic Static Gas Oven

As for all ovens by Forni Visciano, the static volcan wood oven is available in 7 sizes with an inner diamater ranging from 80 to 150 cm.

Materials

Base: reinforced and painted iron

Cooking surface: Biscotto floor from Sorrento

Crown and dome: Refractory bricks from Sorrento

Internal height of the vault: 40 cm

Insulation: expanded clay and ceramic fiber

External covering: glass or ceramic mosaic

Technical Details

Heating
Gas metano/GPL

Gas consumption
GPL 2,37kg/h , methane 3,30m3/h

Chimney
∅ 200/250 DN

Recommended Operating Temperature
400/500 °C

Maximum heat output
18.916 kCal/h – 22 KW – 25 KW*

Flue gases temperature
190°C

Exhaust Mass Flow
650 m3/h (to ignition)
500 m3/h (at full capacity)

Fume extraction
natural draft

Voltage
230V / 50Hz

Total electric power
90 W

Electric power burner
90 W

Inverter electrical power
3,0 kw

Maximum temperature of the exterior part
30°c

Maximum temperature in the technical room (wood stove)
35°c

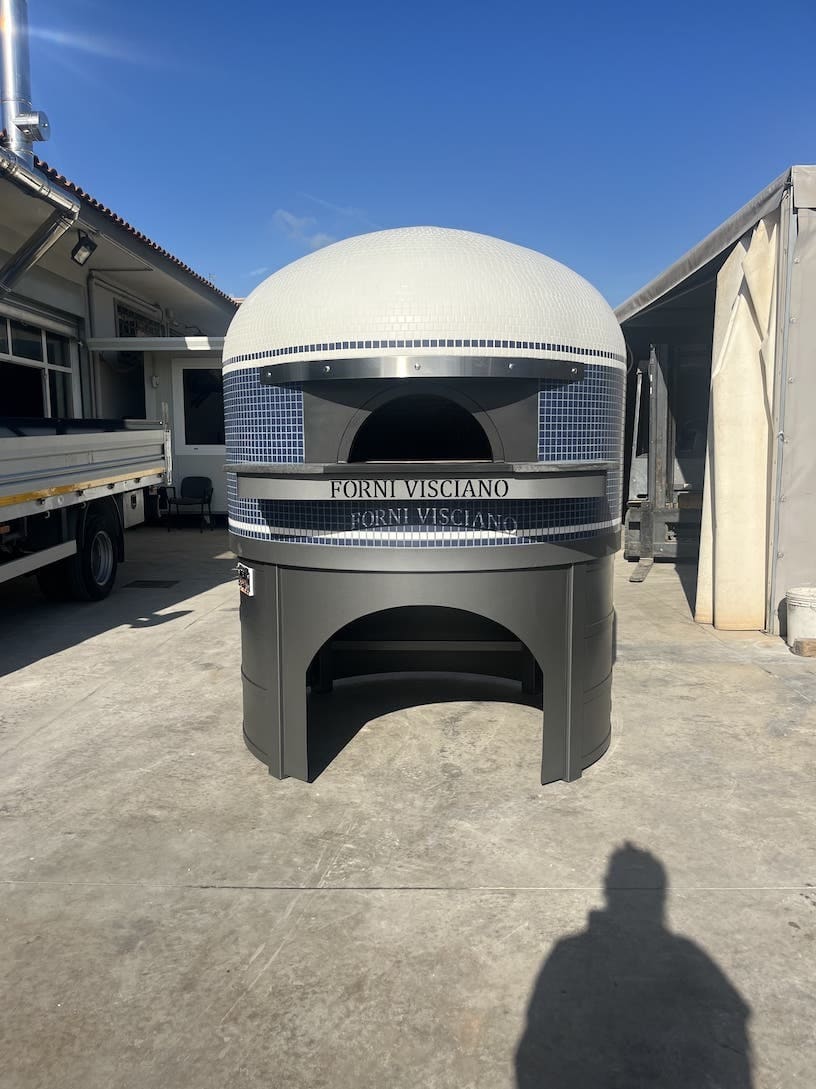

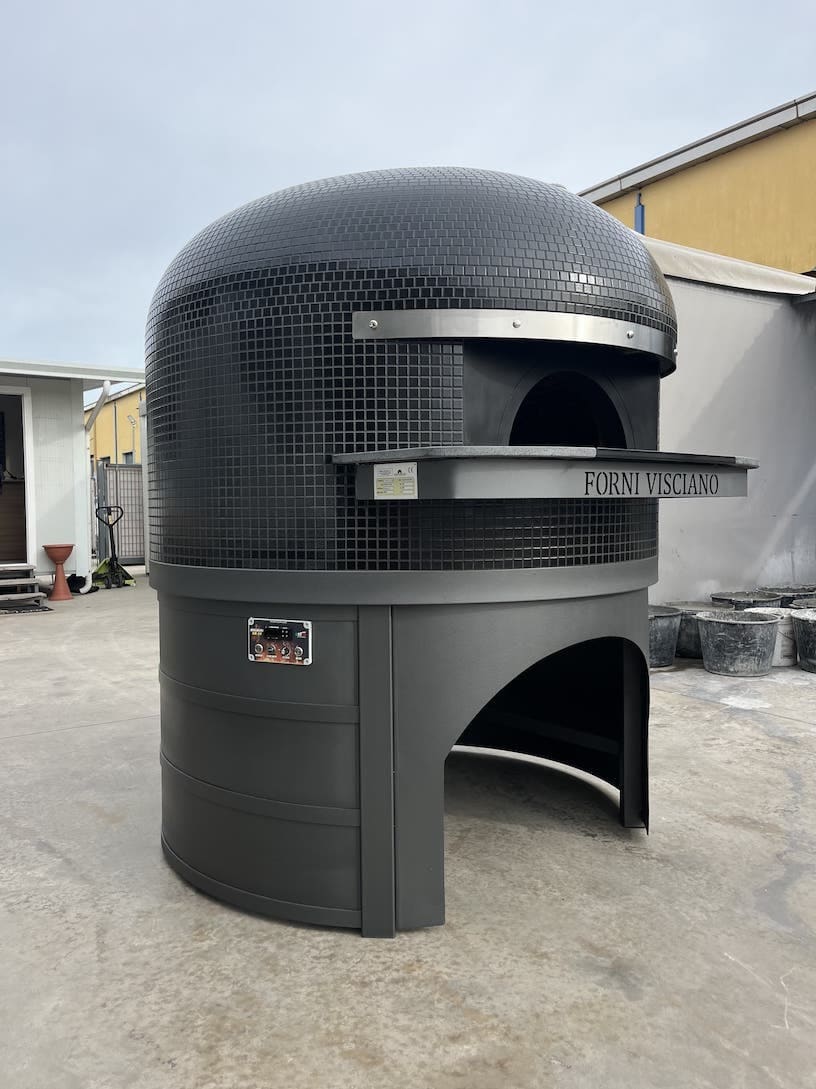

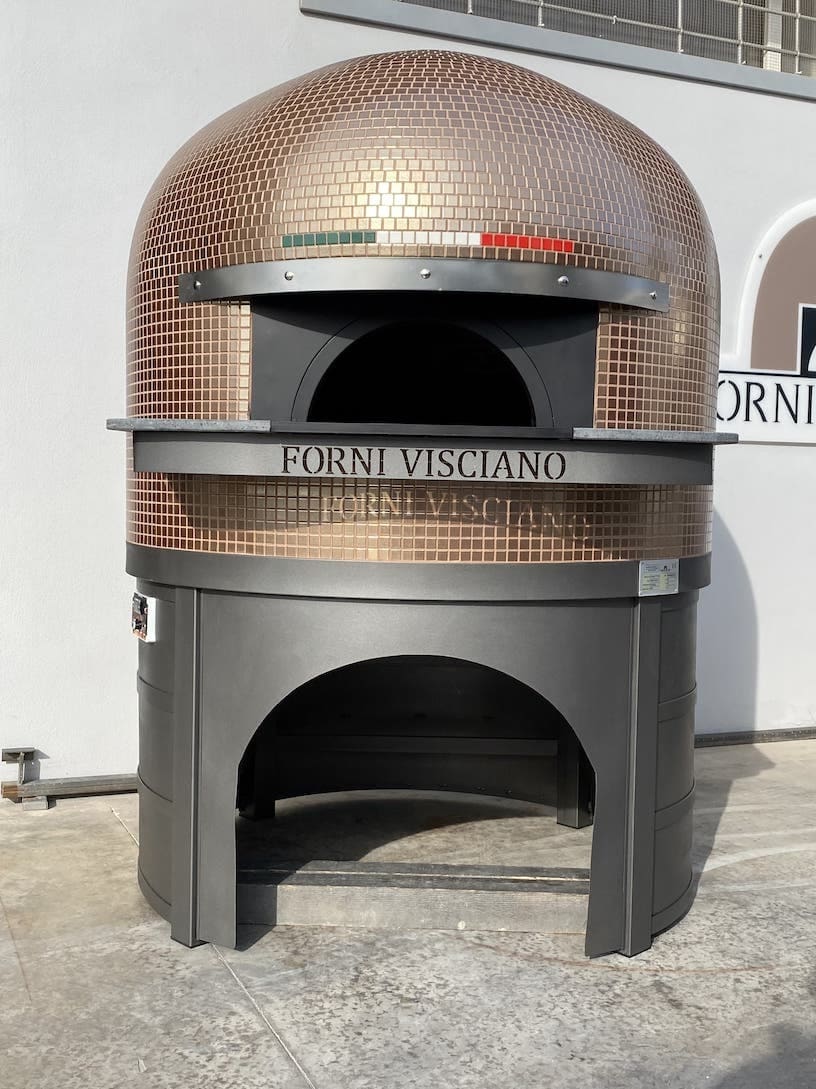

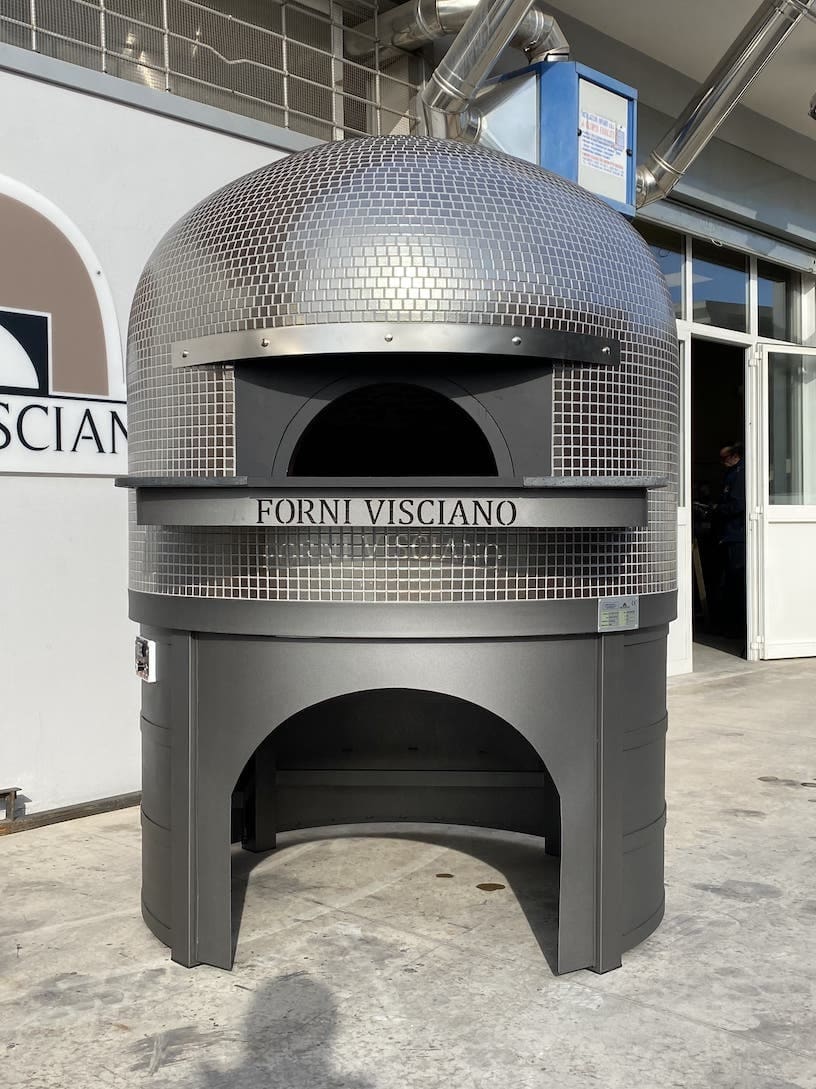

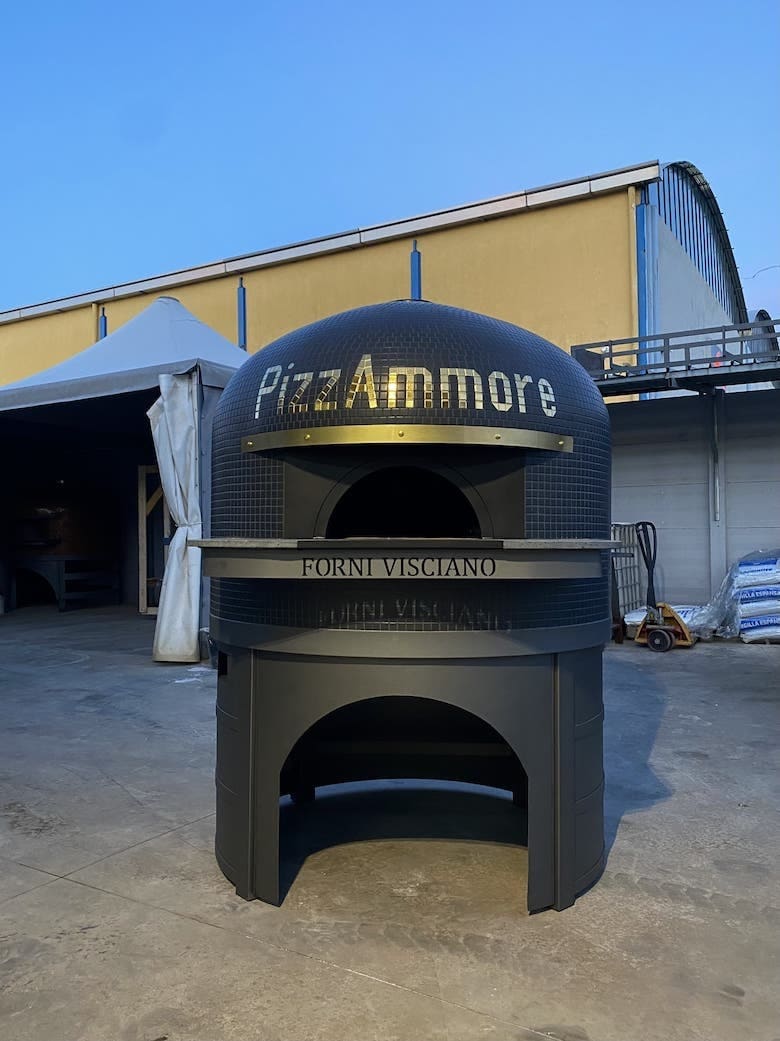

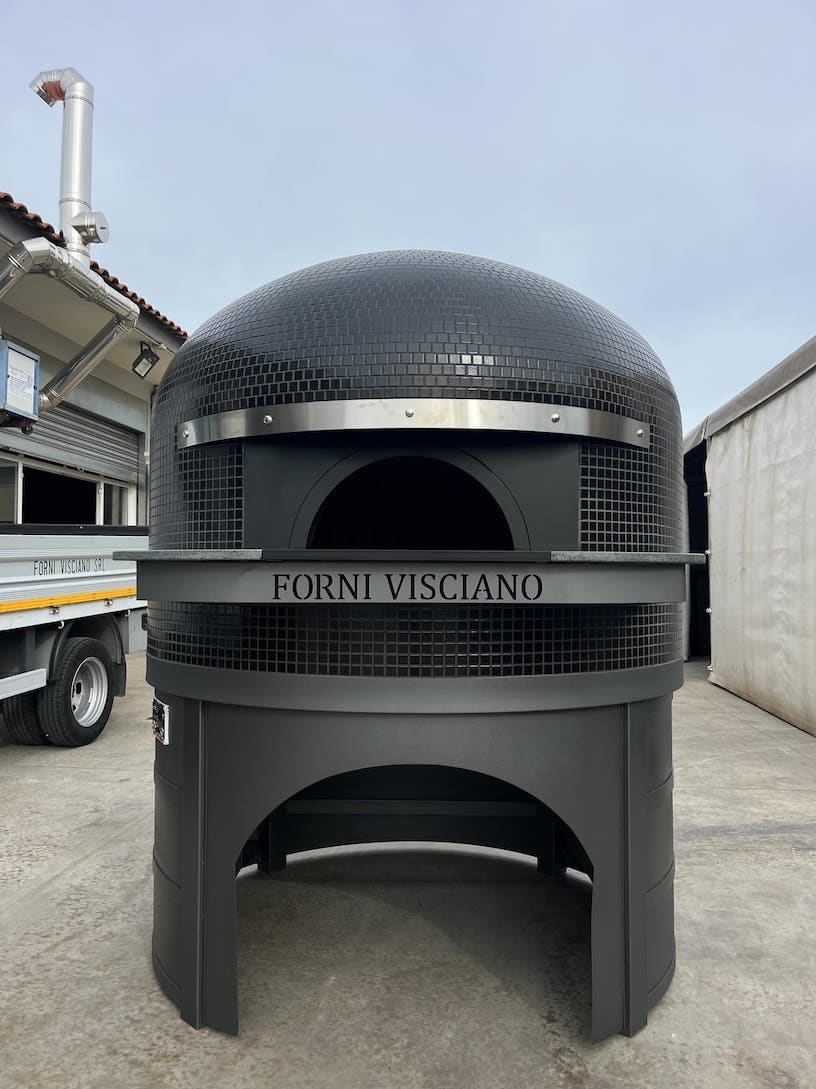

Gallery

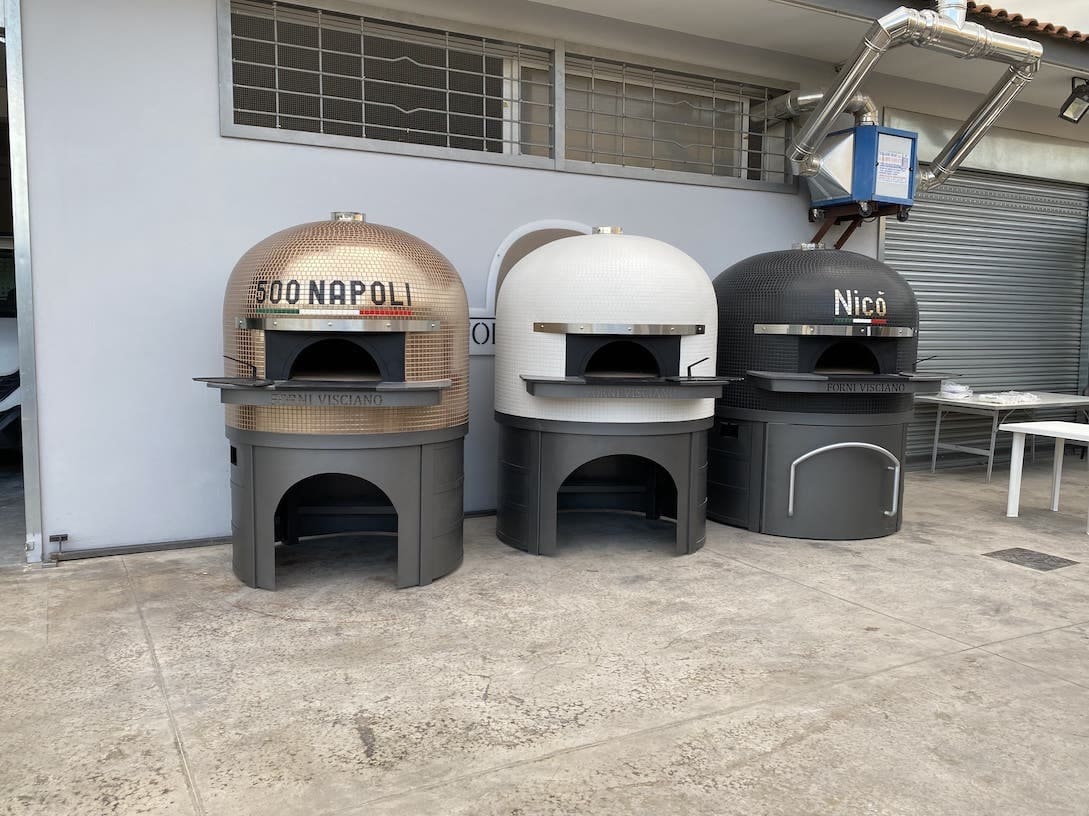

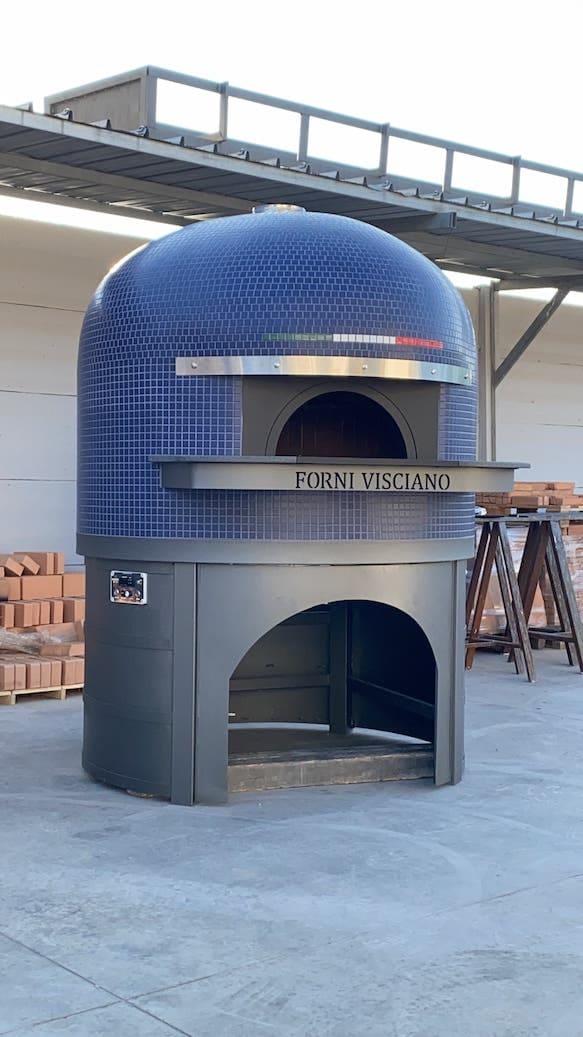

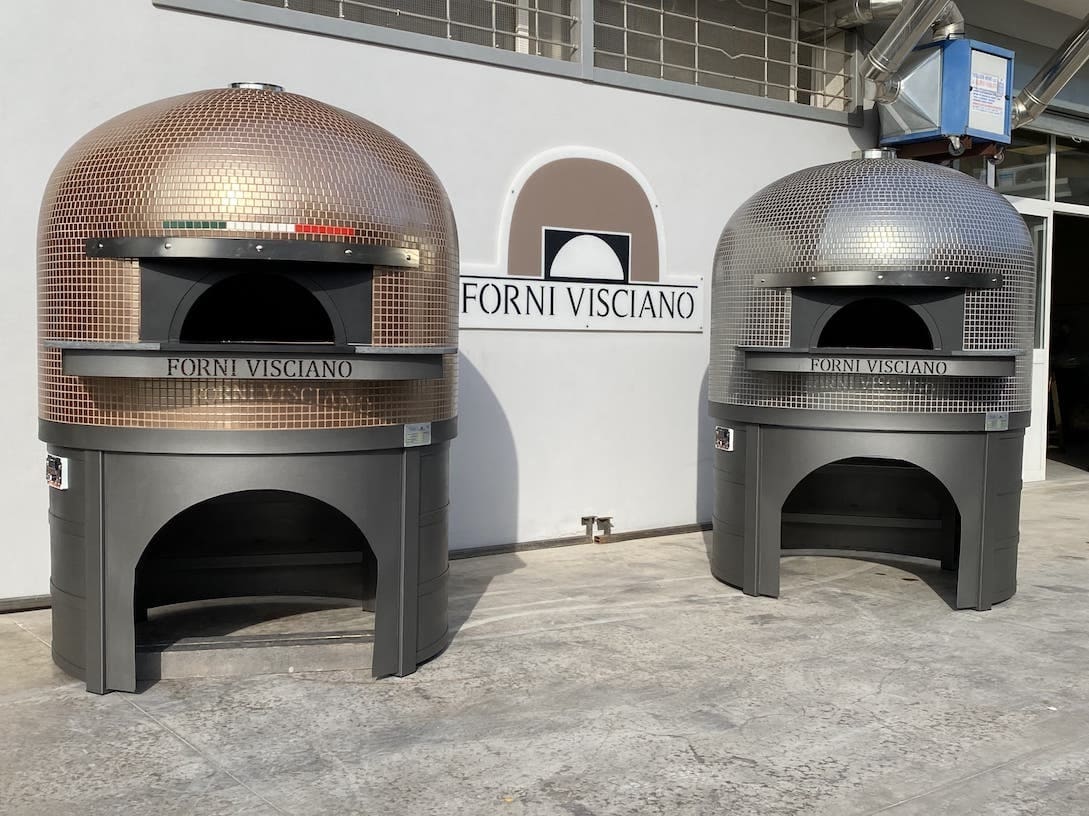

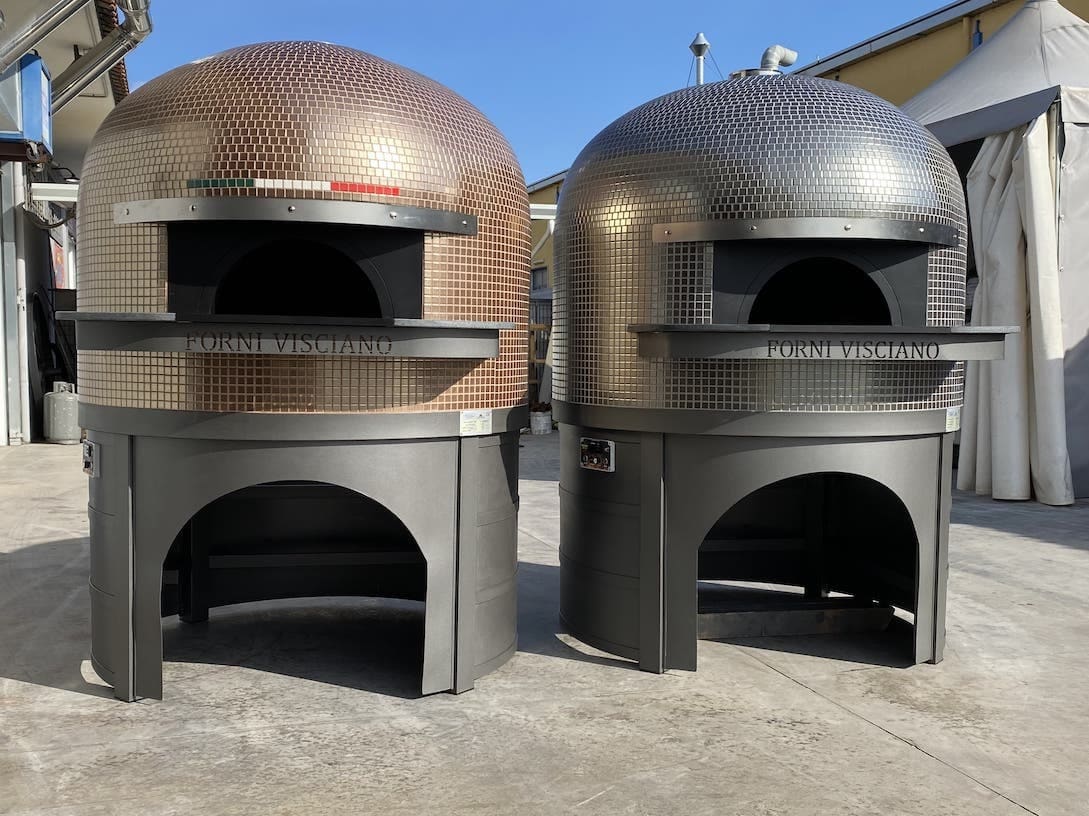

This is the absolute symbol of Pizza in Italy and all over the world. Whoever chooses the classic oven cannot mistake since the classical shape adapts to every kind of style and furniture of the restaurant.

The absolute advantage of the gas oven is the automated management of the temperature through the specific burner. This makes the work of the chef easier, since he won’t have to worry about the fire but to focus exclusively on the cooking. The burner is installed at the height of the oven floor. The flange with a thermal steel sleeve that protrudes about 4 or 5 cm from the hob is inserted into the cooking floor.

Thanks to the reinforced and painted iron base, the stability of this oven is one of the most recognized on the market. The insulation is of high quality thanks to the correct use of expanded clay and ceramic fiber, as well as the Biscotto floor and the Sorrento brick vault that guarantee a homogeneous and constant cooking: in this way the oven gives the pizza the right balance between crispness and softness.

As with all Visciano ovens, the static wood volcano oven also enjoys thermal insulation, able to reduce the external temperature between 93% and 94% compared to the internal temperature. This will keep the temperature inside stabilized, limiting heat losses as much as possible, allowing the person who physically handles the cooking to work easily and agilely, without difficulty.
